Rubber Tire Granules Recycle Waste Tire Shredder Production Line

Brand Name : HHS

Model Number : ZPS-900/1200

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD:5000-20000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 SETS/MONTH

Delivery Time : 25 working days

Packaging Details : wood package /20-40GP/HC

Type : Tire Machine,Rubber Cutting Machine,continuous type

Power(w) : 30X2kw

After-sales service provided : Engineers available to service machinery overseas

Voltage : 380V/50HZ,Customer Request

Name : Used Tire Shreddere

Capacity : 800-1500kg/h

Year : new

Product name : Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery

Function : Tire Powder Recycling Machine,Make Rubber Granule,crumb tires into 30mesh powder

Raw material : waste tire sealing sheet,rubber scraps,truck tire,car tire

End product : rubber granules and powders,rubber granules/rubber powder,tire steel,tire fiber

Usage : Used Tire Recyling,Waste Tyre Dispose

Contact Now

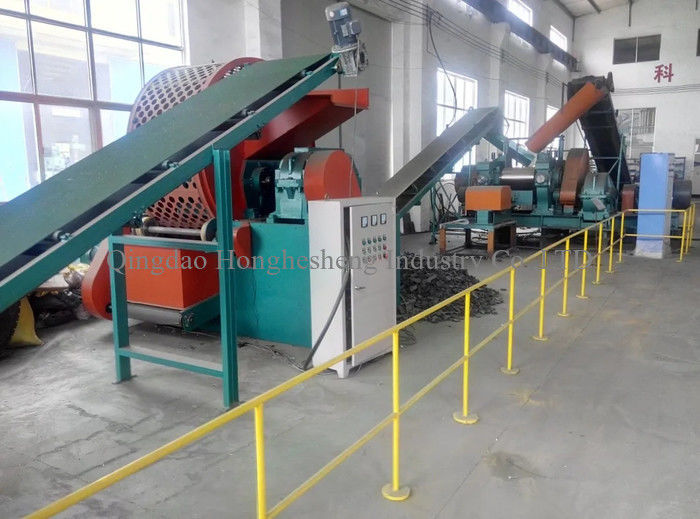

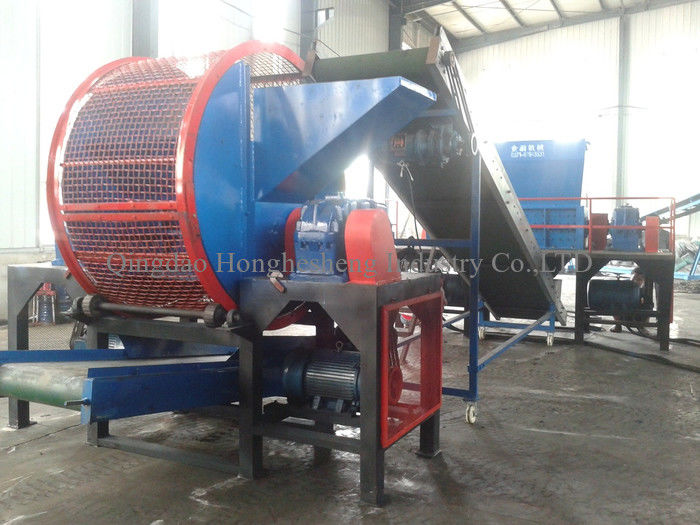

Waste rubber powder production line consists of tire broken machine host and auxiliary machine two parts.Auxiliary equipment:Hook Wire Drawing Machine,Tire Cutter Machine(Optional according to tire size),Conveyor,Magnetic Separator Machine,and other components.

Rubber Tire Granules Recycle Waste Tire Shredder Production Line

Waste Tire Shredder Production Line Rubber Tire Granules Recycle Machine Price Tyre Crusher

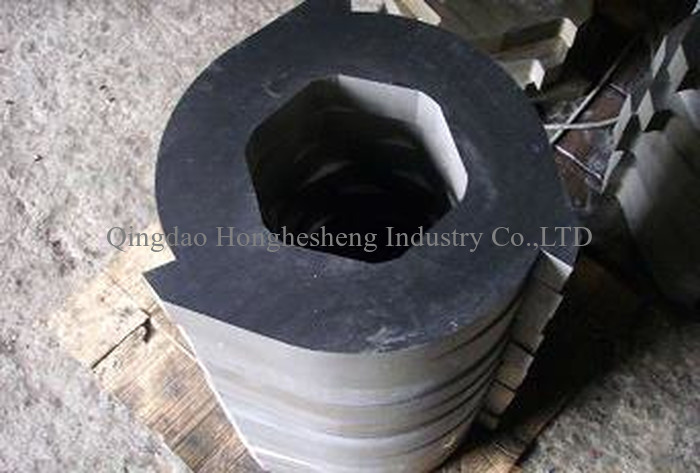

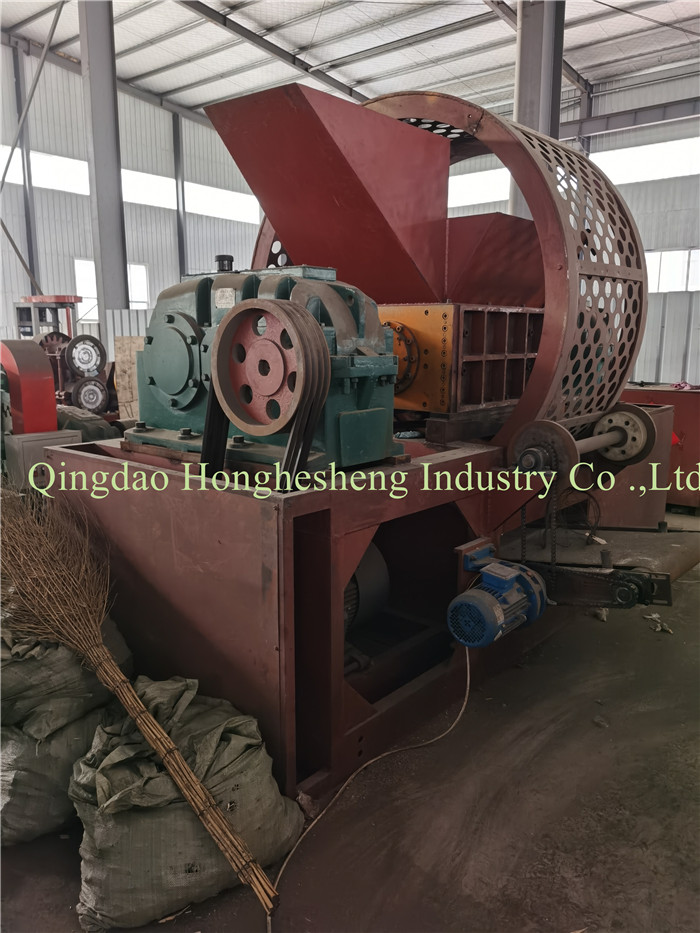

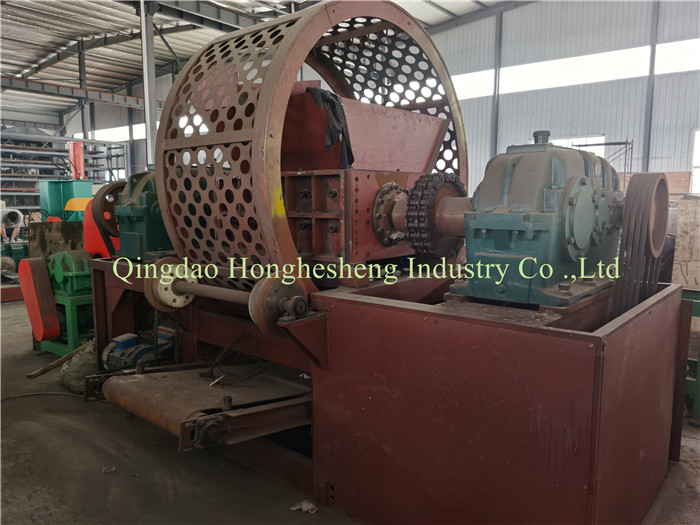

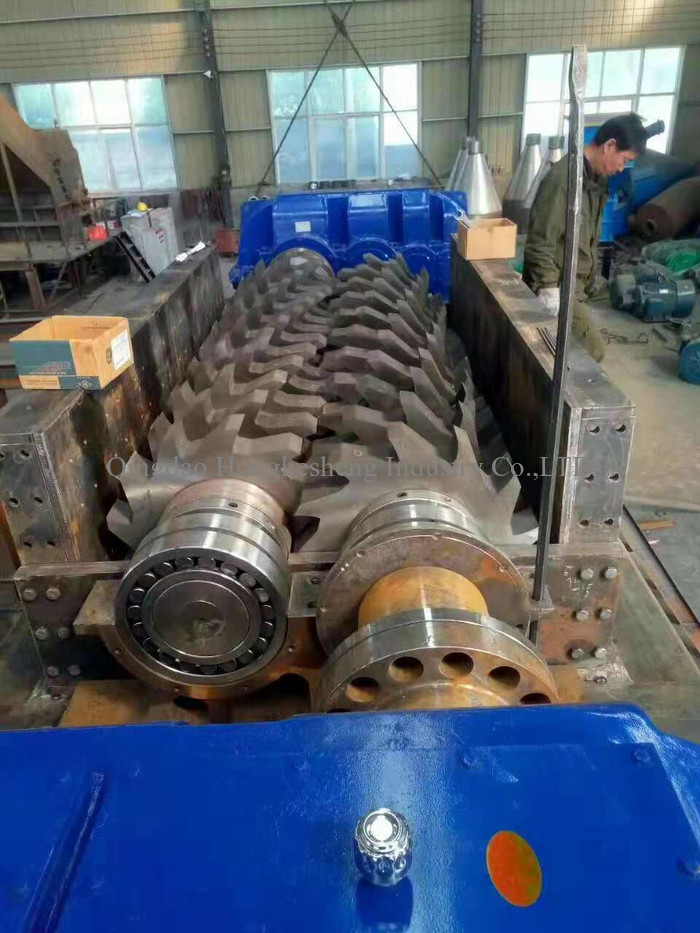

Two shaft shredders are specially designed for used tires, low speed, high torque operation minimize the noise and power consumption with high throughout rate. All the shredder blades thickness ranges from 25mm-152mm depending on type of tires, output,final product, the shredder can process OTR tires, big truck tires, passenger car tires at a rate of 1t-30t in one hour.

Rubber Tire Granules Recycle Waste Tire Shredder Production Line

Features

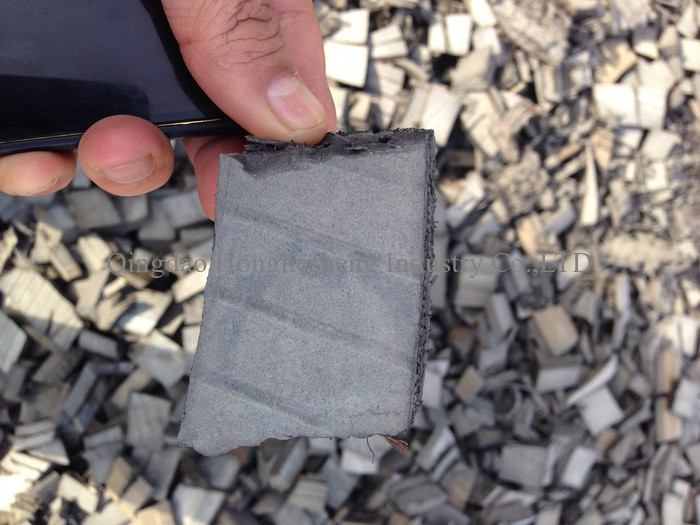

The product is used for cutting whole tire to 50*50mm rubber block.

Whole Scrap Tires Readuced to 2″-6″shreds
Can process large amounts of input per hour
Can be used to process various waste materials
Can be configures width recirculatory accessory equipment

Rubber Tire Granules Recycle Waste Tire Shredder Production Line

Technical Parameters

Model	HHS-900	HHS-1200
Input size	Less than 900	Less than 1200
Discharge size	50—300mm(adjustable)	50—300mm(adjustable)
Motor power	30*2 kw	75*2 kw
Dimension	345021002400mm	410027303300mm
Amount of waste tire	800-1500T/h	2000-3800kg/h
Screen power	1.5kw	5.5kw
Main shaft speed	19rpm	22rpm
Screen speed	4rpm	25rpm
Number of blades	18pcs, made of alloy steel, welded	25pcs, made of alloy steel, welded

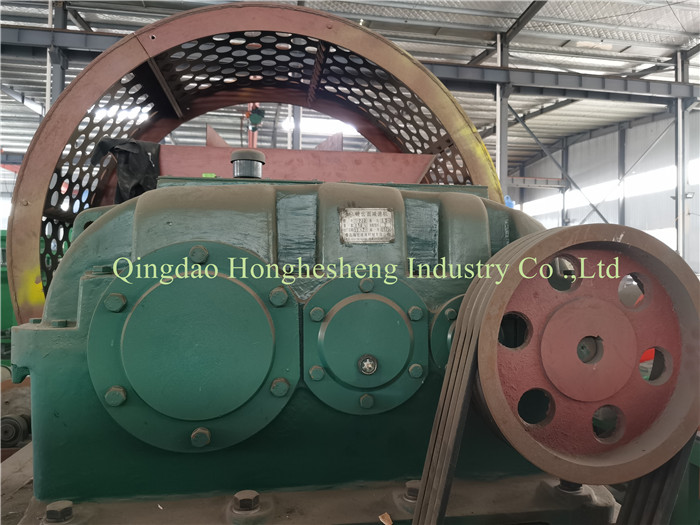

Gearbox	Harden gears, large torque	Harden gears, large torque
Weight	5.8T	15.6T

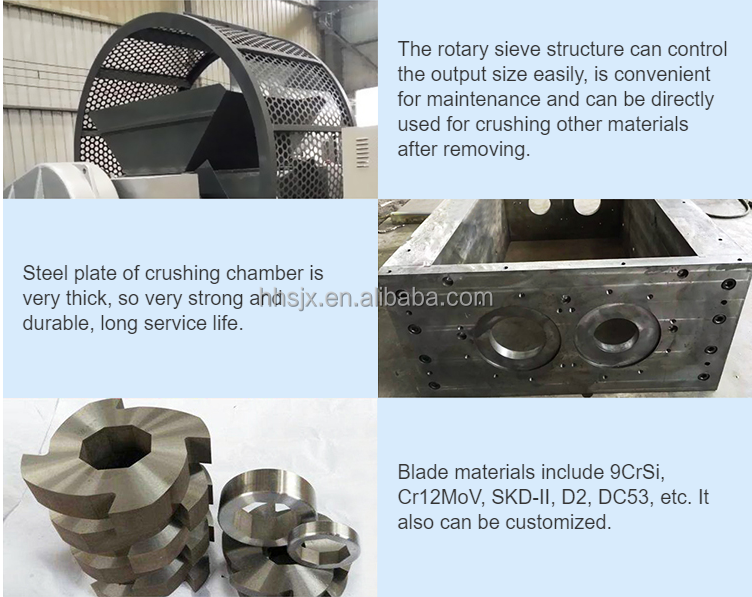

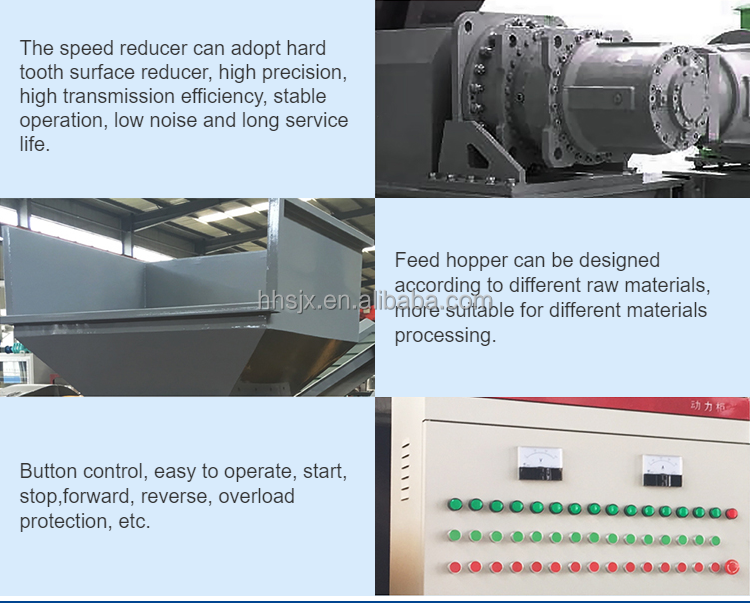

Detailed Pictures

Rubber Tire Granules Recycle Waste Tire Shredder Production Line
